Garantías 360
(National Warranty Management Platform)
UX / UI Case Study
Role: Lead Product Designer & CX Transformation Consultant.
Ecosystem: Omnichannel B2C Mobile App & Web Portal (Consumers) + B2B Web Back-Office System (Service Centers & Field Technicians).
Agency: actidigital
Scope & Craft: End-to-end Product Design, service blueprinting, and high-fidelity interactive prototyping evolved from structural wireframes into a production-ready UI System.
“All product concepts, brand assets, and proprietary frameworks are for portfolio display and illustrative purposes only.”
Core Value Delivered:
Digitized a legacy, paper-based warranty model into a transparent, rule-based system linking Battery Code + Purchase Ticket + Vehicle VIN + Diagnostic Evidence.
Service Blueprint — Clarios / LTH
To-Be Operational & Experience Model for Garantías 360
1. Purchase & Activation
⏱ 5-10 mins
Evidence
Battery QR Label, Purchase Receipt, Virtual Policy (App/Wallet)
Customer Journey
Buys battery & scans QR code; registers purchase receipt & VIN via Mobile App.
Frontstage Actions
Automated Registration: Validates purchase ticket & generates Virtual Policy.
Backstage Actions
Policy Management System: Binds Battery Code + VIN + Receipt + Account.
Support Processes
Database & Security System (Data Parity across channels).
2. Issue & Symptom Intake
⏱ 3-5 mins
Evidence
Claim Folio (#FOL-123), WhatsApp Confirmation, Timeline Status
Customer Journey
Battery fails; selects symptoms ("Car won't start") & submits warranty request.
Frontstage Actions
WhatsApp / App Assistant: Generates unique folio & displays live status.
Backstage Actions
Omnichannel Gateway: Validates initial warranty eligibility & checks rules engine.
Support Processes
Call Center & WhatsApp API (Fallback Support & Alerts).
3. Routing & Check-in
⏱ 15-30 mins
Evidence
Service Center Map, Scheduled Appointment, Check-in Alert
Customer Journey
Selects nearest Service Center (or Home Service) & receives confirmation.
Frontstage Actions
Store / Field Technician: Receives appointment alert & prepares intake queue.
Backstage Actions
Smart Routing Engine: Maps customer location to nearest CS or HDS availability.
Support Processes
Service Center Capacity & Geolocation Mapping Engine.
4. Diagnostic & Resolution
⏱ 20-45 mins
Evidence
Autel Scanner Ticket, Visual Inspection Form, System Dictamen
Customer Journey
Arrives at Service Center; submits folio & oversees scanner diagnostic test.
Frontstage Actions
Shop Technician: Executes 4-step visual check & uploads Autel scanner ticket.
Backstage Actions
Rule & Diagnostic Engine: Calculates SOC %, Voltage & CCA against factory specs.
Support Processes
Quality Laboratory Sync & Central Warranty Rules Engine.
5. Closure & Replacement
⏱ 5-10 mins
Evidence
Pro-rata Invoice, New Battery Receipt, VoC Survey Link
Customer Journey
Reviews automated dictamen, accepts pro-rata adjustment, & rates service.
Frontstage Actions
Service Advisor: Presents system-backed dictamen & hands over new battery.
Backstage Actions
Inventory & Prorrata System: Calculates coverage %, updates stock & invoices.
Support Processes
ERP / POS Integration & VoC Analytics Dashboard.
🔋 Batería (QR)
➔
📄 Folio (#FOL-123)
➔
📱 Póliza Virtual
➔
🚗 VIN Vehículo
The Challenge & Service Friction:
The Enterprise Challenge:
Clarios (global manufacturer of LTH batteries) needed to standardize warranty management across hundreds of service centers, retail stores, and field technicians nationwide.
Key Frictions Identified:
Paper Dependency & Opaque Terms:
Illegible paper policy fine print led to customer mistrust and unexpected out-of-pocket costs at service counters.
Operator Subjectivity:
Service center technicians lacked standardized diagnostic checklists, causing inconsistent warranty approvals and high friction during customer interactions.
Data Fragmentation:
Disconnect between Call Center promises, retail store claims, and technical laboratory evaluations.
Multi-Persona Research & Service Architecture
Consumers (Front-Stage):
Mapped journeys for archetypes. Identified the need for self-service digital policies, plain-language symptom selection, and real-time status tracking.
Technicians & Sales Operators (Mid-Stage):
Analyzed pain points. Highlighted the need for single-screen guided checklists and direct hardware integration.
Operations & Governance (Back-Stage):
Designed for centralized case management, automated proportion calculations, and zero manual data re-entry.
Core Experience Architecture
Designed and validated a high-fidelity MVP structured around 4 core capabilities:
Self-Service Activation & Digital Wallet:
- Progressive disclosure flow allowing instant policy activation via camera receipt upload and VIN binding.
- Centralized My Batteries Hub with native Apple/Google Wallet integration.

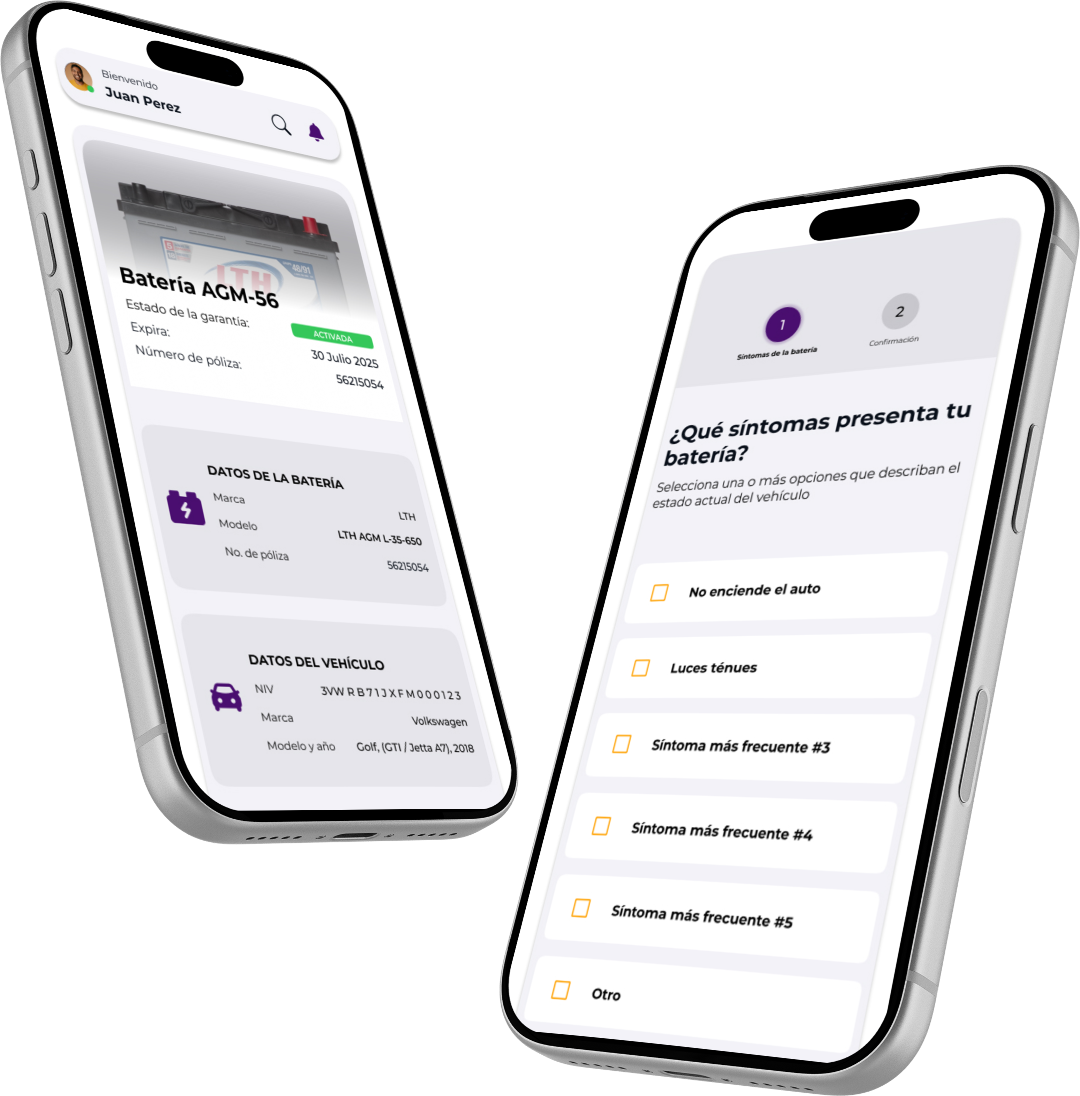

Plain-Language Symptom Intake:
- Replaced mechanical jargon with user-centric symptom selection (“Car won’t start”, “Dim lights”) to bridge the communication gap between consumers and technicians.
Technician Back-Office & Stepper Workflow:
- A 4-step guided evaluation process (
Assign ➔ Visual Check ➔ Technical Diagnostic ➔ Confirmation) that eliminates operator subjectivity.
Automated Dictamen & Rule Engine:
- Hardware integration interface capturing Autel scanner metrics (
CCA,Voltage,SOC %) and automatically generating transparent, system-backed warranty calculations.
Prototyping, Validation & Risk Governance
From Structural Wireframes to Production-Ready UI:

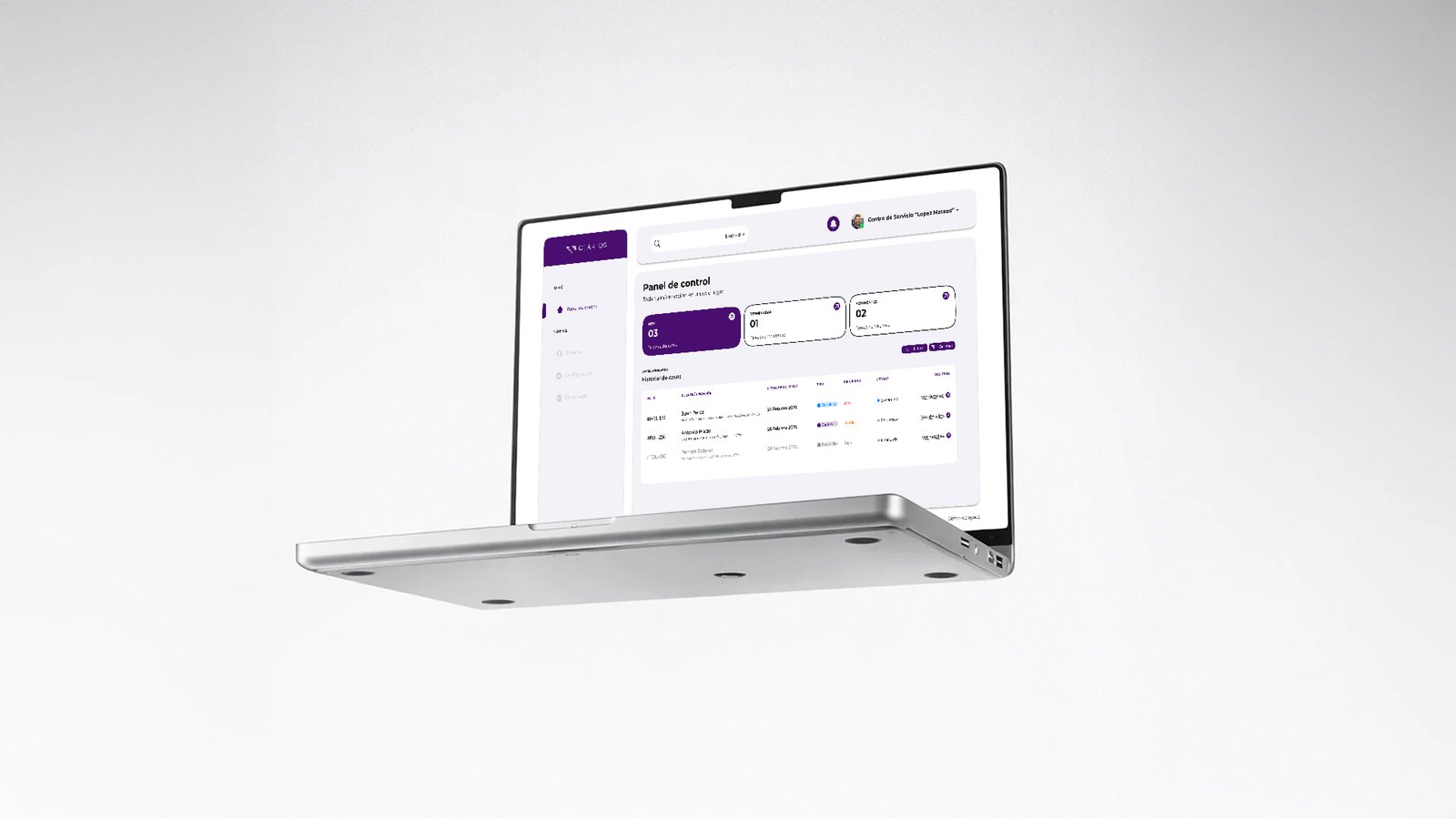

Evolved early low-fidelity layouts into a complete Design System adhering to WCAG 2.1 accessibility standards, purposeful color coding (Purple CTA, Green Active, Yellow Alert), and responsive UI components.
Risk Mitigation by Design:
Identified 10 critical operational risks (e.g., miscaptured folios, missing local service centers) and embedded digital safeguards like dual validation, camera barcode scanning, and fallback Call Center flows.
Evidence-Driven Validation:
Tested interactive prototypes in live simulations with Clarios stakeholders and shop technicians to measure task completion, click paths, and qualitative VoC feedback.
Product Impact & Key Takeaways
Operational Transformation:
Eliminated paper warranty dependency while creating 1:1 data parity between field mobile submissions and desktop processing.
Trust & Transparency:
Replaced verbal arguments at service counters with automated, plain-language resolution summaries.
Design Systems Scale:
Built a scalable component architecture ready to support future omnichannel touchpoints (WhatsApp Assistant AI, QR physical labels).
Connecting consumer accessibility with technician efficiency. Converting complex operational rules into a seamless, multi-platform warranty experience for Clarios.
